Core Product Specifications
Thickness Range: 0.3mm-0.8mm, selectable based on project needs. The 0.3mm-0.5mm range is suitable for lightweight exterior wall decoration (e.g., partial facades of commercial complexes), while 0.6mm-0.8mm is ideal for high wind pressure resistance scenarios (e.g., exterior walls of high-rise residential buildings, coastal area constructions).
Standard Width: 1220mm, which reduces splicing times during construction, lowers the risk of water leakage at joints, and enhances the overall visual coherence of the exterior wall.
Coating Type: High-adhesion polyester (PE) or PVDF coating is adopted, with a wide range of color options (including regular colors from RAL color card and custom colors). The coating has a uniform thickness (dry film thickness: 20-30μm), ensuring no fading or delamination for a long time.
Product Parameters
| Product | color coated aluminum sheets |
| Thickness | 0.2-1.6mm |
| Width | 30-1600mm |
| Material | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8081 etc |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Length | As Alient's Demand |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| | PE Paint Coating : Not Less Than 18um |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 3 Tons Per Specification |
| Delivery Time | Within 30-45 Days |
| Loading Port | Shanghai,Ningbo,Qingdao,Tianjin Port and Etc |
| Application | Aluminum Roofing,ACP,Roller Shutter Window,Roller Shutter Door,Aluminum Ceiling,Aluminum Grilling,Aluminum Downspout System,Home Appliance's Plate, body tank of cold chain truck,high speed rail,aluminum pull ring,food packaging,outer packing case of capacitor,external contour of letter channel |
Core Performance Advantages
Strong Weather Resistance: The coating has excellent UV resistance, acid rain resistance, and high-low temperature resistance (stable in -40℃-80℃ environment). It can be used outdoors for 15-20 years without rusting or chalking, reducing the maintenance cost of building exterior walls.
Reliable Material Quality: The base material is high-purity aluminum of 1100/3003 series, which combines light weight (density only 2.7g/cm³) with certain strength. It is easy to transport and hoist, and can meet processing needs such as bending and cutting.
Environmental Protection & Durability: The aluminum base material is recyclable, and the coating contains no heavy metals, complying with building environmental protection standards. Its smooth surface is easy to clean; daily rainwater washing can remove dust and keep the exterior wall neat.
Applicable Scenarios
Designed specifically for building exterior wall decoration and cladding, it is suitable for:
Commercial buildings: Facades and storefront decorations of shopping malls and office buildings.
Residential buildings: Base material for external thermal insulation and decoration integrated panels of high-rise residential buildings and villas.
Public buildings: Exterior wall renovation of public spaces such as schools, hospitals, and transportation hubs.
Processing & Construction Advantages
Easy Processing: It can be directly subjected to processes like roll forming, bending, and punching, adapting to different exterior wall shapes (e.g., curved facades, linear decorations).
Efficient Construction: The 1220mm width combined with lightweight characteristics allows a single sheet to cover a large area. The construction efficiency is over 30% higher than that of traditional ceramic tiles and stone materials.
Good Compatibility: It can perfectly match with exterior wall insulation layers and keel systems, supporting various installation methods such as dry hanging and pasting, and adapting to different building construction standards.
Product Tags:
|
|

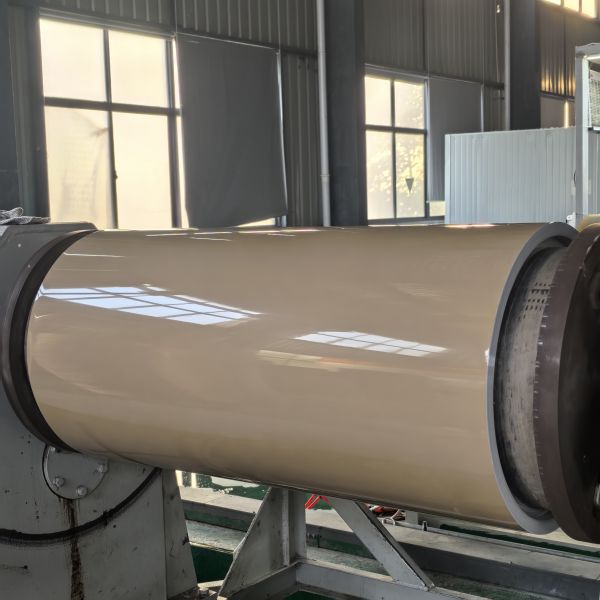

0.3mm-0.8mm Thickness Color Coated Aluminum Sheet (1220mm Wide) – Construction Exterior Cladding & Decoration Images
|
